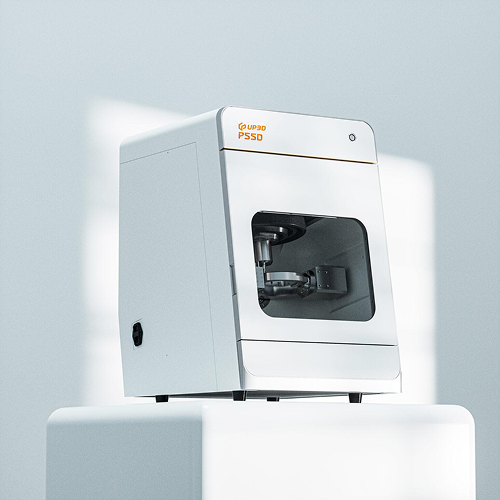

UP3D P55D
The UP3D P55D is a smart 5-axis dry dental milling machine designed for dental laboratories and practice clinics. It offers high-precision milling without the need for compressed air, a powerful German-engineered spindle up to 60,000 rpm, and advanced automation features to support efficient production of dental restorations such as crowns, bridges, dentures, and implant components.
-
Description
-
Specifications
The UP3D P55D is an advanced high-performance milling solution engineered for modern digital dentistry workflows. With an intelligent full-servo drive system, it actively reduces vibration and delivers stable micron-level precision, even during long continuous runs. Its plug-and-mill design eliminates the need for compressed air, reducing setup complexity and operational costs. The machine features a large processing chamber, integrated dust-proof silicone shielding, and a 13-tool automatic changer, enabling continuous milling across a variety of dental materials. A built-in ionizer efficiently removes static resin debris to enhance milling cleanliness and reduce manual post-processing. Additionally, UP3D’s MillMind remote-monitoring software allows users to track machine status, tool life, and alerts from a PC or mobile device, enabling overlooked workflow control.
| Specification | Details |
|---|---|
| Model | P55D |
| Axes | 5-axis simultaneous milling system |
| Spindle Speed | Up to 60,000 rpm |
| Spindle Power | Approx. 0.8 kW max |
| Tool Capacity | 13 tools with automatic changer |
| Material Support | Zirconia, Wax, PMMA, PEEK, Composite Resin, Soft CoCr |
| Material Formats | Discs (Ø ≈ 98.5 mm, thickness 10-30 mm), Blocks up to 40×20×20 mm |
| Dust Protection | Integrated silicone dust shield |
| Control Software | MillMind remote control, smart monitoring |
| Data Interfaces | Wi-Fi, USB, Ethernet |
| Power Requirements | Selectable 100-130 VAC / 200-235 VAC, 50-60 Hz |
| Operating Conditions | 10 °C–35 °C, ≤ 80% relative humidity |
| Dimensions | ~442 × 560 × 704 mm |
| Weight | ~106 kg |
Key features
-
Air-Free Milling
No compressed air required — simplifying setup and reducing equipment costs.
-
High-Speed Precision Spindle
German-engineered spindle with speeds up to 60,000 rpm for accurate, stable milling.
-
Smart Servo System
Full servo control to actively reduce vibration and achieve micron-level precision.
-
5-Axis Simultaneous Milling
Enables complex geometries, vertical 90° milling, and detailed contouring in dental restorations.
-
Large Working Chamber
Spacious internal volume gives flexibility for processing larger models and material formats.
-
Automatic Tool Changer (ATC)
13-tool magazine supports continuous milling across different materials with minimal downtime.
-
Efficient Dust & Debris Management
Integrated silicone dust shield and ionizer neutralize static resin powder to enhance machine cleanliness and longevity.
-
Remote Monitoring & Control
MillMind cloud service enables remote machine monitoring, alerts, and tool-life tracking.
-
Quiet, User-Friendly Operation
Designed for quieter milling and easy operation, suitable for labs and clinical practice environments.”
