UP3D UP CAM

UPCAM is a smart dental CAM (computer-aided manufacturing) nesting software developed by UP3D Tech to generate efficient milling toolpaths and optimize material use for dental restorations. It bridges the gap between design (CAD) and manufacturing (milling) by taking 3D restoration designs and turning them into optimized machining instructions for dental mills.

UPCAM is an advanced CAM solution tailored for dental laboratories and clinics that use digital CAD/CAM workflows. Instead of manually arranging restorations and generating milling instructions, UPCAM simplifies the process using intelligent automation. It imports standard design files (typically STL from CAD software), automatically nests restorations into discs or blocks, and produces optimized NC toolpaths. The result is faster setup, better material utilization, and reliable milling outcomes — whether producing crowns, bridges, implant bar frameworks, or complex anatomical restorations.

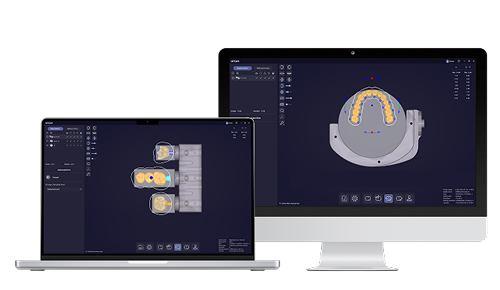

The user interface is designed to be intuitive and efficient, helping technicians generate milling programs quickly, and reducing the learning curve for new users. UPCAM supports smart milling strategies — including 90° milling positions and custom strategy edits — to adapt milling behavior based on material hardness and restoration geometry. Although developed to work especially well with UP3D milling machines, it also supports general CAM tasks for dental mills that accept standard NC output formats.

Specification / Feature Details
Software Type Dental CAM nesting software
Primary Input STL (3D restoration data)
Primary Output NC toolpath instructions for CNC milling
Nesting Capability Automatic restoration layout for discs/blocks
Material Support Zirconia, PMMA, wax, PEEK, composites (variable by machine)
Milling Strategies 90° milling, strategy editor, custom optimization
User Interface Intuitive multi-language workspace
Operating System Windows 10 / Windows 11 (64-bit) recommended
Minimum Hardware Intel i7 (or equivalent), 16 GB RAM, dedicated GPU (NVIDIA GTX 1050 or higher), SSD recommended for OS and secondary storage for project files
Non-Supported OS macOS, Windows 7/8/X (desktop)

Key features

  • Smart Nesting & Toolpath Generation

    Automatically nests restorations on discs or blocks with efficient material placement.

    Generates stable NC toolpaths in just minutes — e.g., single restorations in ~30 s and full disc nesting in ~6 min.

  • 90° Milling Support

    Enables precise milling of undercuts and hard-to-reach areas by rotating tools into a vertical position at 90°, improving surface finish and detail.

  • Strategy Editor

    Customize milling strategies based on material type and hardness, improving tool life and production efficiency.

    Example: slower speed for harder materials to reduce tool wear, faster speed for softer materials to improve throughput.

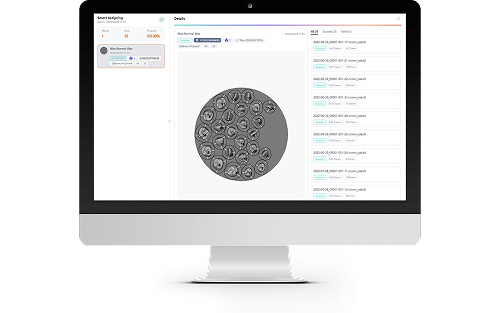

  • Automatic Nesting

    Lays out multiple restorations automatically and generates pin placements for disc-type materials, minimizing manual setup time.

  • Compatibility with CAD Data

    Accepts STL files and other standard outputs from CAD tools (e.g., UPCAD, exocad, 3Shape), enabling seamless integration into digital dental workflows.

  • User-Friendly Interface

    Designed with intuitive controls and multi-language support to shorten the training curve and improve operator productivity.

  • Licensed & Stable Software

    UPCAM is fully developed and licensed by UP3D Tech, ensuring a reliable and secure production environment.
